BMW i3

http://www.roperld.com/science/ElectricCarsMusings.pdf


These two colors cost $550 extra.

Tera World interior

Note the backward-opening rear doors.
hhttp://www.roperld.com/Science/BMWi3.htm

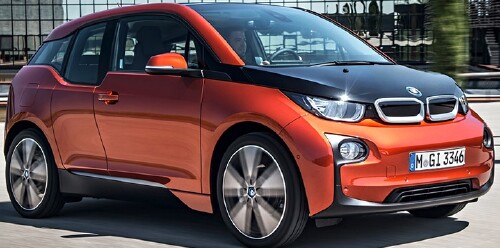

Red BMW-i3 pictures

Data 2017

Check the official documentation for items listed here to be sure and in case of changes.

Battery voltage:
360 volts
Battery cells:
Samsung NMC Li-ion in 8 modules of 12 cells = 96 cells
Battery weight:
450 lb/204 kg
Battery energy:
33 kWh (~30 usable)
Battery heating/cooling:
liquid (70 degrees F)
Battery replace:
<77%
Charger power:
Charging time:
120 V: 12 hrs (15 A); 240 V: 3.5 hrs (30 A) level-2

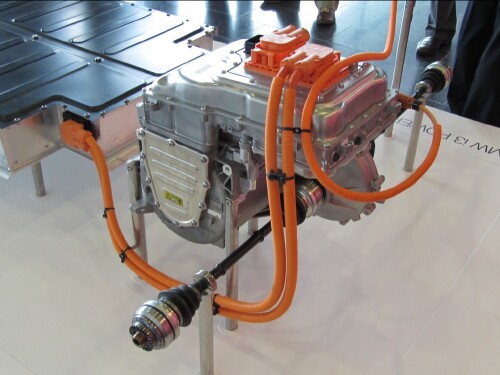

Motor power:
125 kW/168 hp
Torque:
185 lb-ft/251 n-m
Range Extender (REx):
647 cc gasoline 2-cylinder SULEV
34-hp/25-kW & 40.6-lb-ft/55-n-m @ 4300 rpm
264 lbs
Gasoline tank:
2.4-gallons; 91 octane gasoline with 10% ethanol maximum

114 miles/~200 miles-(~104+~96)-with-REx (Comfort Mode CM)
12% increase in Eco Pro Mode > CM
24% increase in Eco Pro+ Mode > CM

Regenerative Braking:
70-hp/52-kW (brake light comes on)
Mobility package:
gasoline loaner
Top speed :
93 mph (~70 mph REx mode to maintain 6.5% SOC)
Acceleration::
0-60 mph: 6.9-seconds/7.3-seconds with REx
Fuel economy (EPA):
124 mpge = 3.62 miles/kWh
Rex: 117 mpge electric/39 mpg gasoline
100,000 miles/8 years; 30% capacity loss
Basic warranty:
50,000 miles/4 years
Seating:
4
Display:

6.5"x1.5" dash screen; 10.2" touch screen

Cabin heater:
heat pump on i3, but resistance heating on REx
Weight:
2635-lbs/1195-kg
2899-lbs/1315-kg with REx
Weight distribution:
50/50
Structure:
Aluminum chassis, carbon-fiber frame, plastic body panels
http://insideevs.com/bmw-i3-repair-process-detail/
Dimensions:
Length: 13'1.3", Width: 5'9.9", Height: 5'2.1"
Ground clearance:
5.11"/140-mm
Turning circle:
32.35'/9.86-m
0.29/0.30 with REx
Features:

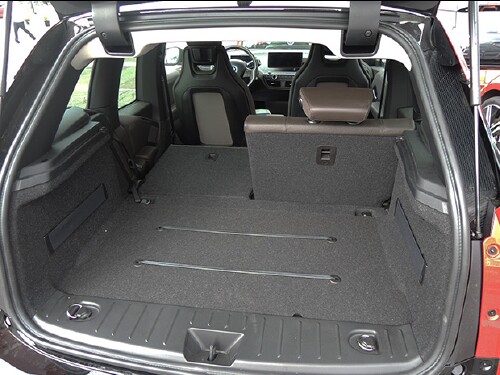

Back-seat head rests fold backward
Interiors: Mega, Giga, Tera

Giga World interior
Heated seats
CCS fast charger
Maintenance:
no extra cost
Tires:
155/70 R19; 155/70 R19 front, 175/65 R19 rear for REx
MSRP:
$41,350/$45,200 (-$7,500 US tax credit)

Without REx

With REx

Without REx

Without REx

This shows the narrow tires.

Mega World interior


This is for the BMW ActiveE precursor car to the BMW i3. It had a 32-kWh battery with 28-kWh useable.
It appears that the available capacity was kept nearly constant for the first 20,000 miles by using some of the 4-kWh buffer as needed.

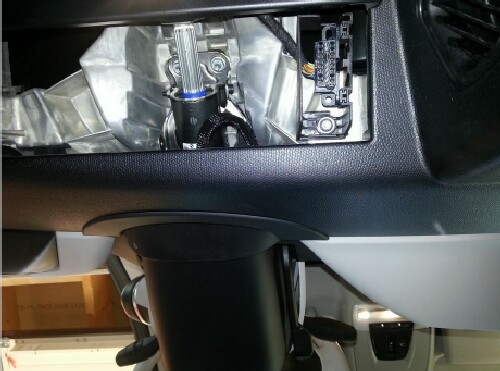

Location of the OBDII receptacle looking up below the steering wheel (Top right):

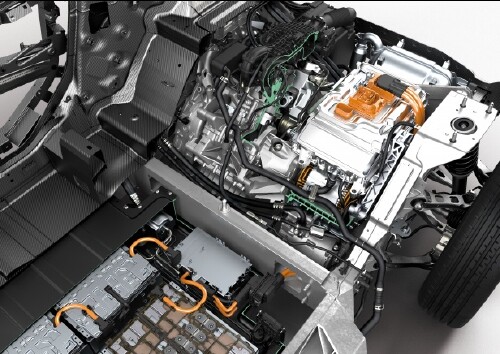

Range Extender (REx)

In the USA the range extender option, a small gasoline engine, is automatically activated when the battery SOC drops below 6.5%. While running it maintains the SOC at 6.5%. It cannot be used to take the SOC above 6.5% as it can be in Europe. Its behavior in the USA needs to be changed to be similar to its behavior in Europe.


The exhaust pipe is under the car.

Strong argument against REx
Another argument against REx
Updates to i3 Rex in 2015
Coding Tutorial for the i3

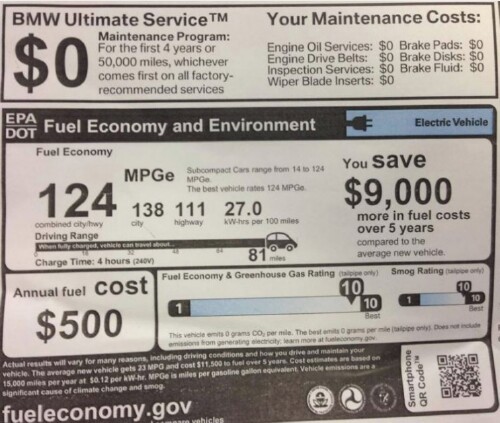

EPA Ratings (Monroney Sticker)

.
Explanation of the EPA Monroney label

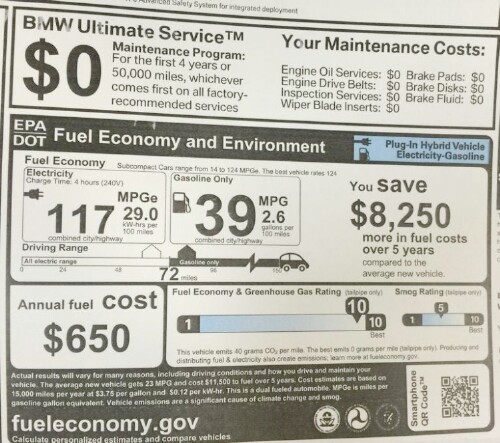

The EPA ratings for the BMW i3 REx:

Movies

Electric Vehicles

Reviews

References

Go to top.

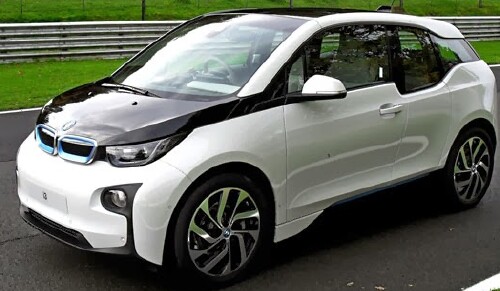

This shows one of 2 colors that does
not cost extra.


miles/kWh=0.0292*MPGe

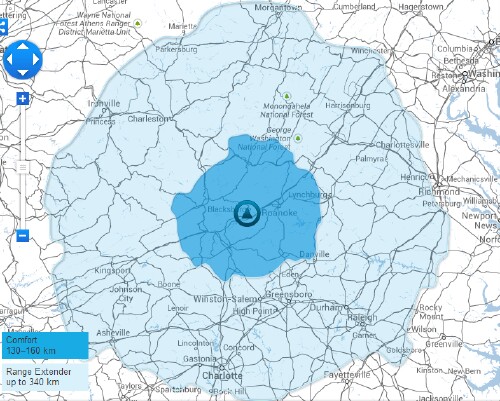

BMW i3 & i3 REx range from Blacksburg, Virginia:

L. David Roper interdisciplinary studies
http://www.roperld.com/science/ElectricCarsMusings.pdf

L. David Roper, http://www.roperld.com/personal/roperldavid.htm
23 August, 2016
